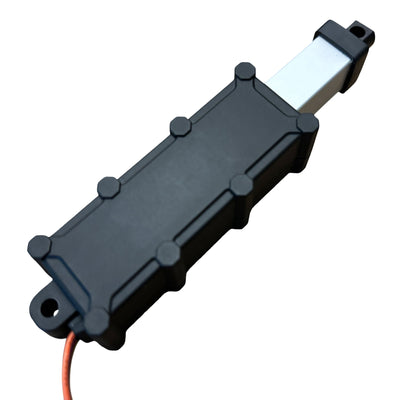

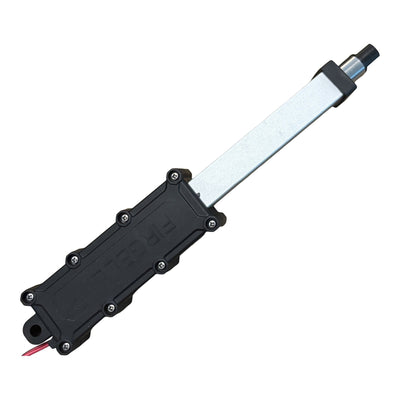

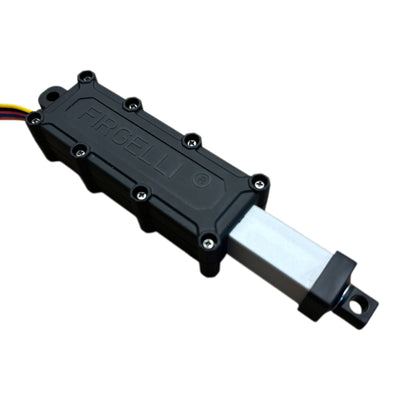

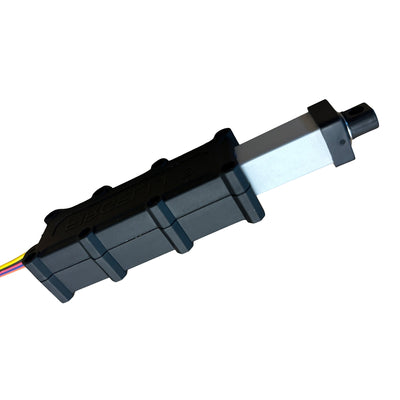

Description

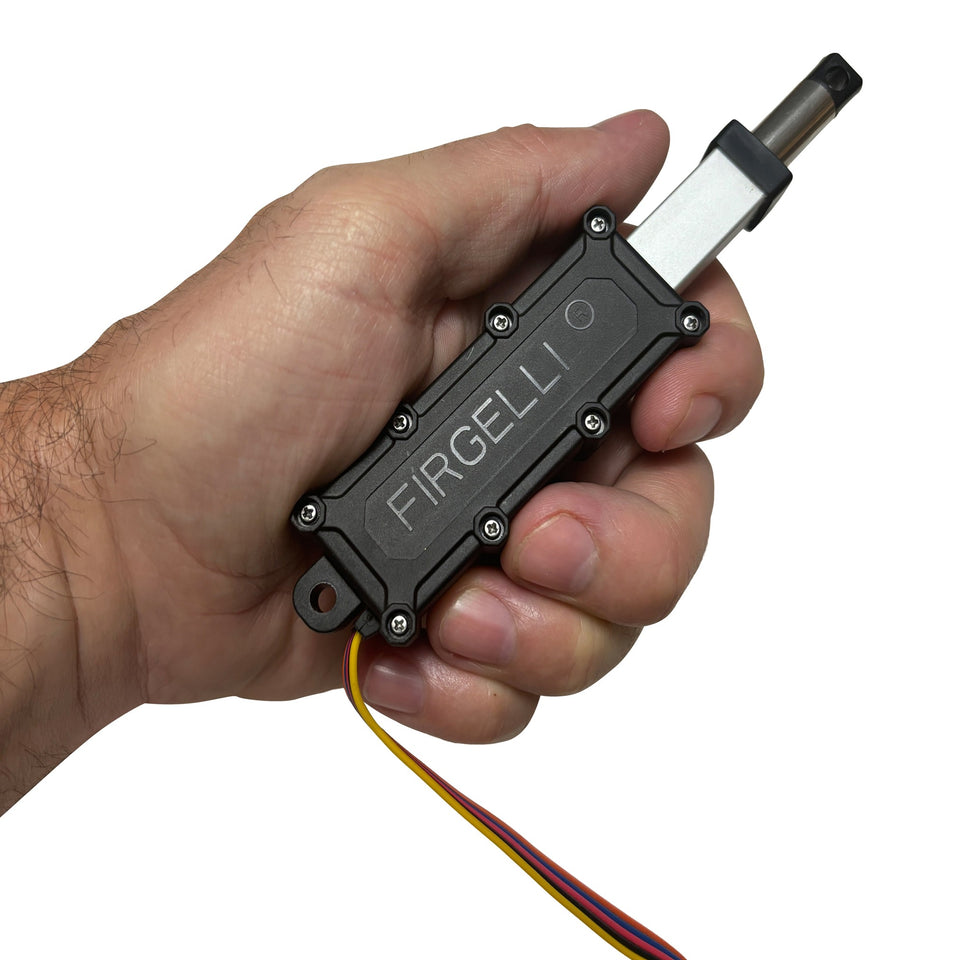

They’re small, light, quiet, and very durable. Ideal for applications where limited space is a necessity and little force is required. The Micro Utility Linear Actuator is Similar to the original F12 Actuators and is our new line of micro linear actuators featuring durable, slim, and lightweight design with all metal gears.

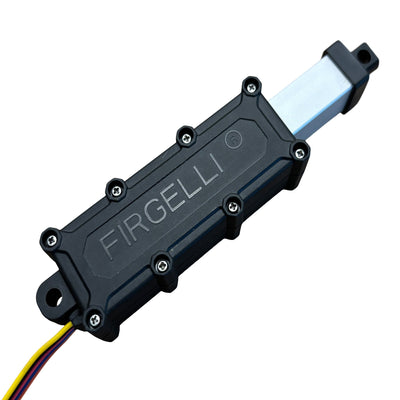

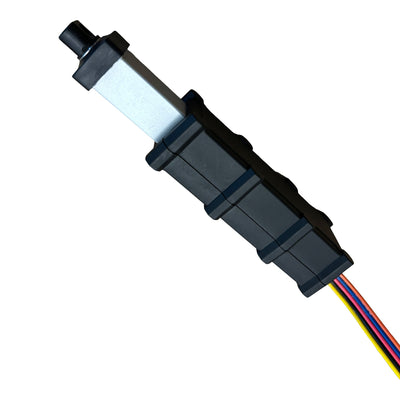

Mounting Points

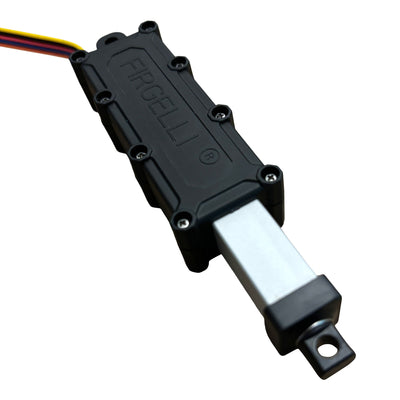

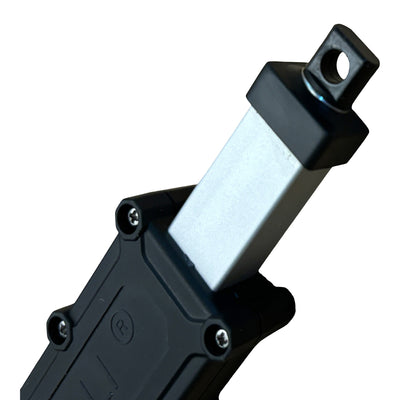

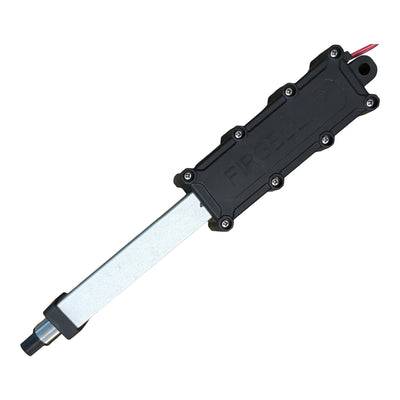

Mounting these Micro Actuators is simple. Each end of the Actuator has 2 clevis holes that are 4.1mm dia (0.16" dia) so that a 4mm screw can be used to secure them. In addition, the moving end shaft of the Micro Actuator is able to rotate up to 180 degrees so that the holes do not need to line up with the motor end of the Actuator body.

Mounting the Body of the Actuator is also an option, you can mount to the durable plastic motor body or the aluminum shaft if desired. The benefit of using the 2 round clevis holes of the Actuator is that the Actuator is able to rotate and swivel as its moves which are likely for a lot of applications.

Control Options:

These Micro Actuators are a simple 2-wire configuration, this means that you simply supply a 12v DC power source to make the Actuator move, and reversing polarity will change its direction. Most people use a Rocker-Switch to perform this action, or perhaps a remote control system that has 2 buttons (Up and Down)

For greater control options such as Timers, remote control etc they also work with our FIRGELLI FCB-1 and FCB-2 controllers.

SPECIFICATIONS

	FA-MU-8-12-X	FA-MU-16-12-X	FA-MU-38-12-X
Max Load	8-lbs force (35N)	16-lbs force (71N)	38-lbs force (169N)
No load speed	47mm/sec	18mm/sec	8mm/sec
Input Voltage	12V DC
Speed at Full Load	12mm/sec (0.5"/sec)
Stroke length Custom	1-8" (0-200mm)
End of stroke Limit switches	Built-in, non-adjustable
Duty Cycle	25%, max 2 minutes continuous use
IP Rating	IP54
Operating temperature	5 - 40 degrees C
Current Draw No-load	0.1 Amps
Current Draw Full-load	1 Amps
Mounting Points	Clevis holes on both ends. 4.1mm dia (0.16" dia)
Operating Noise	65 dBA
Motor Type	Brushed DC Motor with built-in Gear head and metal gears

Speed Load Curves

speed and load curve for Micro Utility Actuator

Actuator Dimensions

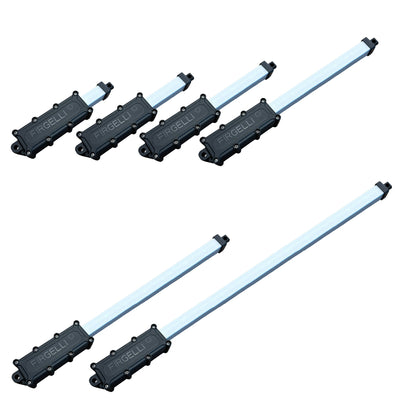

Click on each image to get the PDF dimensions sheet. All SKU's are below. First are all the 8lb force models then the 16lb models, and then the 38lb models.

FA-MU-8-12-1

Micro Utility actuator dimensions with a 1 inch stroke

FA-MU-8-12-2

Micro Utility actuator dimensions with a 2 inch stroke

FA-MU-8-12-3

Micro Utility actuator dimensions with a 3 inch stroke

FA-MU-8-12-4

Micro Utility actuator dimensions with a 4 inch stroke

FA-MU-8-12-5

Micro Utility actuator dimensions with a 5 inch stroke

FA-MU-8-12-6

Micro Utility actuator dimensions with a 6 inch stroke

FA-MU-8-12-7

Micro Utility actuator dimensions with a 7 inch stroke

FA-MU-8-12-8

Micro Utility actuator dimensions with a 8 inch stroke

FA-MU-16-12-1

FA-MU-16-12-2

FA-MU-16-12-3

FA-MU-16-12-4

FA-MU-16-12-5

FA-MU-16-12-6

FA-MU-16-12-7

FA-MU-16-12-8

FA-MU-38-12-1

FA-MU-38-12-2

FA-MU-38-12-3

FA-MU-38-12-4

FA-MU-38-12-5

FA-MU-38-12-6

FA-MU-38-12-7

FA-MU-38-12-8

VIDEO

DIMENSIONS (STEP & PDF)

Hole to Hole Open and Closed Lengths:

Stroke	Closed	Open	STEP File
1" (25.4mm)	108.4mm	133.8mm	FA-MU-XX-12-1
2 Inch (50.8mm)	133.8mm	184.6mm	FA-MU-XX-12-2
3 Inch (76.2mm)	159.2mm	235.4mm	FA-MU-XX-12-3
4 Inch (101.6mm)	184.6mm	286.2mm	FA-MU-XX-12-4
5 Inch (127mm)	210mm	337mm	FA-MU-XX-12-5
6 Inch (152.4mm)	235.4mm	387.8mm	FA-MU-XX-12-6
7 Inch (177.8mm)	260.8mm	438.6mm	FA-MU-XX-12-7
8 Inch (203.2mm)	286.2mm	489.4mm	FA-MU-XX-12-8

PDF Drawings for each SKU

Stroke Length (mm)	Force (lbs)	Force (N)	SKU
25 mm	8 lbs	35 N	FA-MU-8-12-1
25 mm	16 lbs	75 N	FA-MU-16-12-1
25 mm	38 lbs	175 N	FA-MU-38-12-1
50 mm	8 lbs	35 N	FA-MU-8-12-2
50 mm	16 lbs	75 N	FA-MU-16-12-2
50 mm	38 lbs	175 N	FA-MU-38-12-2
75 mm	8 lbs	35 N	FA-MU-8-12-3
75 mm	16 lbs	75 N	FA-MU-16-12-3
75 mm	38 lbs	175 N	FA-MU-38-12-3
100 mm	8 lbs	35 N	FA-MU-8-12-4
100 mm	16 lbs	75 N	FA-MU-16-12-4
100 mm	38 lbs	175 N	FA-MU-38-12-4
125 mm	8 lbs	35 N	FA-MU-8-12-5
125 mm	16 lbs	75 N	FA-MU-16-12-5
125 mm	38 lbs	175 N	FA-MU-38-12-5
150 mm	8 lbs	35 N	FA-MU-8-12-6
150 mm	16 lbs	75 N	FA-MU-16-12-6
150 mm	38 lbs	175 N	FA-MU-38-12-6
175 mm	8 lbs	35 N	FA-MU-8-12-7
175 mm	16 lbs	75 N	FA-MU-16-12-7
175 mm	38 lbs	175 N	FA-MU-38-12-7
200 mm	8 lbs	35 N	FA-MU-8-12-8
200 mm	16 lbs	75 N	FA-MU-16-12-8
200 mm	38 lbs	175 N	FA-MU-38-12-8
